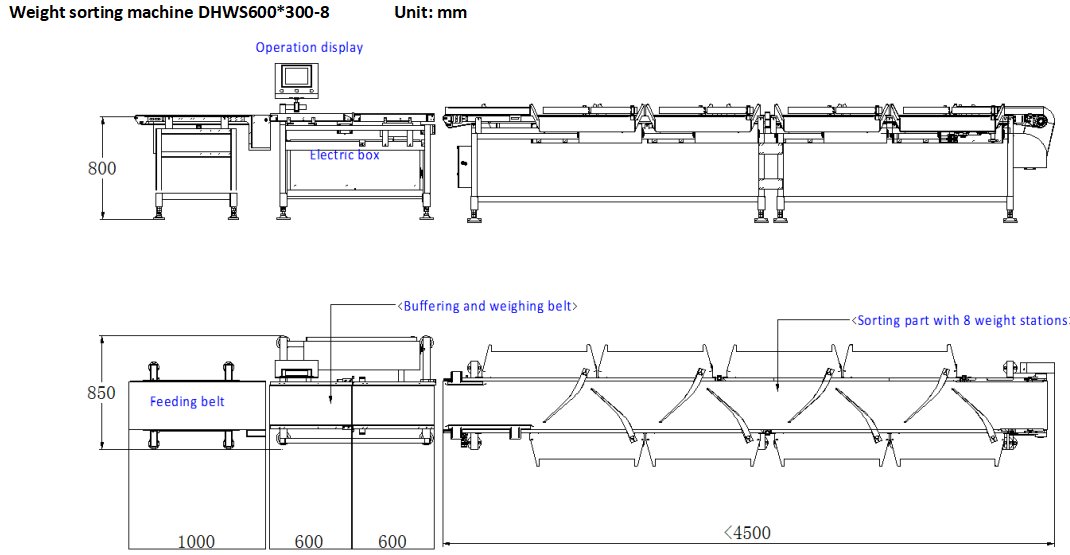

● 4 parts: Feeding belt, buffering belt, weighing belt and sorting conveyor.
● Strong stainless steel 304 structure
● Waterproof and moisture protection, anti - condensation device in electric box.
● Control board Potting process.
● Reliable and stable weighing and control system
● Weighing data USB port download in Excel sheet.
● Operation display: 8 Inches Color Touch Screen
● Product Storage: 100 products preset.
● Strong flapper rejector: Three million times testing
● Remarks: Feeding conveyor is for choice, it’s convenient for manual feeding; avoid strong shock by manual feeding to ensure the weighing accuracy.
Model | ZLBGFJ-600-300-8 |
Sorting product | Max size: (400mmx250mmx100mm L*W*T) |
Min size: (200mmx100mmx50mm L*W*H) | |
Weighing capacity | 2500g |
Minimum graduation | 0.01g |
Weighing speed | 120 pcs/min (adjustable speed) |
Weighing accuracy | ±5-10g |
Sorting grades | 8 grades |
Weighing belt size | 600mm*300mm (L*W) |
Rejecting system | Flapper rejector (swing arms) |
Sorting direction | From left to right (Facing the operation display) |
Construction | Waterproof and moisture protection (International standard IP65) |
Weighing sensor | Germany HBM load cell |
Operation display | 8 inches touch screen |
Products storage | Can restore and recall 100 products |
Belt conveyor | Food Grade PU Belt |
Language | English |
Height of conveyor | 800+60mm (Customized) |
Power supply | Single phase AC220V±10%, 50/60HZ |
Weighing data output | USB port for download the data into Excel sheet |
Construction | SUS304, polishing |
Using environment | High Humidity |
Package | With plastic film inside and professional export plywood case outside. |
Item | Component | Unit | QTY | Brand/Material |
1 | Control board | SET | 1 | Dahang |
2 | Weighing System | SET | 1 | Dahang |
3 | Load cell | SET | 1 | Germany HBM |
4 | 8 Inch Touch Display LCD | SET | 1 | China |
5 | Photoelectric switch | PAIR | 1 | Omron |
6 | Variable-frequency Drive | SET | 3 | Taiwan Delta |
7 | Motor | SET | 4 | JSCC |
8 | Conveyor belt | SET | 4 | Food grade PU |
9 | Cylinder | SET | 8 | AirTAC |
10 | Flapper rejector | SET | 8 | Dahang |
11 | Bearing | SET | Several | NSK |
12 | Structure | SET | 1 | Stainless steel 304 |
13 | Operation manual | SET | 1 | Dahang DHV5.2 |
14 | Calibration weight | PCS | 1 | 500g |
